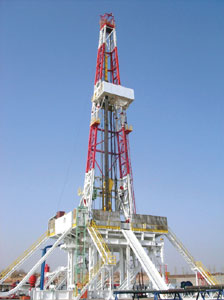

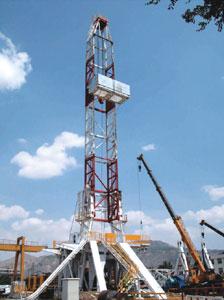

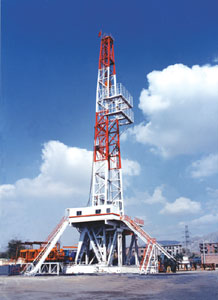

Skid-Mounted Drilling Rigs
 |
 |
 |
AC/VFD Drive Drilling Rigs
| Model | SDR-1000AC |
SDR-1500AC |
SDR-2000AC |
SDR-3000AC |
| Drilling Depth (4-1/2" Drill Pipe), ft | 13,000 |
16,000 |
23,000 |
30,000 |
| Static Hook Load, lbs | 500,000 |
750,000 |
1,000,000 |
1,500,000 |
| Number of Lines Stung to The Traveling Block | 10 |
12 |
12 |
14 |
| Diameter of Drilling Line, in | 1-1/4 |
1-3/8 |
1-1/2 |
1-3/4 |
| Drawworks Rated Power, HP | 1,000 |
1,500 |
2,000 |
3,000 |
| Main Brake | Hydraulic Disc Brake |
Hydraulic Disc Brake |
Hydraulic Disc Brake |
Hydraulic Disc Brake |
| Auxiliary Brake | Eddy Current Brake |
Eddy Current Brake |
Eddy Current Brake |
Eddy Current Brake |
| Mast Type | Cantilever/Bootstrap |
Cantilever |
Cantilever |
Cantilever |
| Mast Height, ft | 141 |
148 |
148 |
158 |
| Substructure Type | Box-on-Box/Slingshot |
Box-on-Box/Slingshot/Swing-lift |
Slingshot/Swing-lift |
Swing-lift |
| Substructure Height, ft |
25 |
29.5 |
34.5 |
40 |
| Clear Height Under Rotary Beam, ft |
20 |
25 |
29.5 |
33 |
| Rotary Table | 27½" |
37½" |
37½" |
49½" |
| Hook Block, lbs | 500,000 |
750,000 |
1,000,000 |
1,500,000 |
| Swivel, lbs | 500,000 |
750,000 |
1,000,000 |
1,500,000 |
| Mud Pumps | F-1000 x 2 |
F-1600 x 2 |
F-1600 x 3 |
F-1600 x 3 |
DC/SCR Drive Drilling Rigs
| Model | SDR-1000DC |
SDR-1500DC |
SDR-2000DC |
SDR-3000DC |
| Drilling Depth (4-1/2" Drill Pipe), ft | 13,000 |
16,000 |
23,000 |
30,000 |
| Static Hook Load, lbs | 500,000 |
750,000 |
1,000,000 |
1,500,000 |
| Number of Lines Stung to The Traveling Block | 10 |
12 |
12 |
14 |
| Diameter of Drilling Line, in | 1-1/4 |
1-3/8 |
1-1/2 |
1-3/4 |
| Drawworks Rated Power, HP | 1,000 |
1,500 |
2,000 |
3,000 |
| Main Brake | Hydraulic Disc Brake |
Hydraulic Disc Brake |
Hydraulic Disc Brake |
Hydraulic Disc Brake |
| Auxiliary Brake | Eddy Current Brake |
Eddy Current Brake |
Eddy Current Brake |
Eddy Current Brake |
| Mast Type | Cantilever/Bootstrap |
Cantilever |
Cantilever |
Cantilever |
| Mast Height, ft | 141 |
148 |
148 |
158 |
| Substructure Type | Box-on-Box/Slingshot |
Box-on-Box/Slingshot/Swing-lift |
Slingshot/Swing-lift |
Swing-lift |
| Substructure Height, ft | 25 |
29.5 |
34.5 |
40 |
| Clear Height Under Rotary Beam, ft | 20 |
25 |
29.5 |
33 |
| Rotary Table | 27½" |
37½" |
37½" |
49½" |
| Hook Block, lbs | 500,000 |
750,000 |
1,000,000 |
1,500,000 |
| Swivel, lbs | 500,000 |
750,000 |
1,000,000 |
1,500,000 |
| Mud Pumps | F-1000 x 2 |
F-1600 x 2 |
F-1600 x 3 |
F-1600 x 3 |
Mechanical Drive Drilling Rigs
| Model | SDR-1000M |
SDR-1500M |
SDR-2000M |
| Drilling Depth (4-1/2" Drill Pipe), ft | 13,000 |
16,000 |
23,000 |
| Static Hook Load, lbs | 500,000 |
750,000 |
1,000,000 |
| Number of Lines Stung to The Traveling Block | 10 |
12 |
12 |
| Diameter of Drilling Line, in | 1-1/4 |
1-3/8 |
1-1/2 |
| Drawworks Rated Power, HP | 1,000 |
1,500 |
2,000 |
| Main Brake | Hydraulic Disc Brake |
Hydraulic Disc Brake |
Hydraulic Disc Brake |
| Auxiliary Brake | Eddy Current Brake |
Eddy Current Brake |
Eddy Current Brake |
| Mast Type | Cantilever/Bootstrap |
Cantilever |
Cantilever |
| Mast Height, ft | 141 |
148 |
148 |
| Substructure Type | Box-on-Box/Slingshot |
Box-on-Box/Slingshot/Swing-lift |
Slingshot/Swing-lift |
| Substructure Height, ft | 25 |
29.5 |
34.5 |
| Clear Height Under Rotary Beam, ft | 20 |
25 |
29.5 |
| Rotary Table | 27½" |
37½" |
37½" |
| Hook Block, lbs | 500,000 |
750,000 |
1,000,000 |
| Swivel, lbs | 500,000 |
750,000 |
1,000,000 |
| Mud Pumps | F-1000 x 2 |
F-1600 x 2 |
F-1600 x 3 |
Compound Drive Drilling Rigs
| Model | SDR-1000MC |
SDR-1500MC |
SDR-2000MC |
| Drilling Depth (4-1/2" Drill Pipe), ft | 13,000 |
16,000 |
23,000 |
| Static Hook Load, lbs | 500,000 |
750,000 |
1,000,000 |
| Number of Lines Stung to The Traveling Block | 10 |
12 |
12 |
| Diameter of Drilling Line, in | 1-1/4 |
1-3/8 |
1-1/2 |
| Drawworks Rated Power, HP | 1,000 |
1,500 |
2,000 |
| Main Brake | Hydraulic Disc Brake |
Hydraulic Disc Brake |
Hydraulic Disc Brake |
| Auxiliary Brake | Eddy Current Brake |
Eddy Current Brake |
Eddy Current Brake |
| Mast Type | Cantilever/Bootstrap |
Cantilever |
Cantilever |
| Mast Height, ft | 141 |
148 |
148 |
| Substructure Type | Box-on-Box/Slingshot |
Box-on-Box/Slingshot/Swing-lift |
Slingshot/Swing-lift |
| Substructure Height, ft | 25 |
29.5 |
34.5 |
| Clear Height Under Rotary Beam, ft | 20 |
25 |
29.5 |
| Rotary Table | 27½" |
37½" |
37½" |
| Hook Block, lbs | 500,000 |
750,000 |
1,000,000 |
| Swivel, lbs | 500,000 |
750,000 |
1,000,000 |
| Mud Pumps | F-1000 x 2 |
F-1600 x 2 |
F-1600 x 3 |
