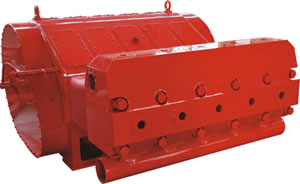

QPP-2500 plunger pumps are rugged well service pumps designed and manufactured to operate in harsh pumping conditions. The rated braking horsepower is 2,500 HP with 8" stroke length. The plunger sizes are available from 3-3/4"to 6" These pumps are designed for acidizing and fracturing applications.
QPP-2500 Quintuplex Plunger Pumps
|
 |
||||||||||||||||
Performance
Plunger Diameter |
Displacement Per Rev |
Displacement at Pump Strokes Per Minute / Pinion RPM |
|||||||||
111/705 |
150/953 |
200/1271 |
250/1588 |
330/2100 |
|||||||
in |
gal/rev |
gpm |
psi |
gpm |
psi |
gpm |
psi |
gpm |
psi |
gpm |
psi |
| 6 | 4.89 | 543 | 6,805 | 734 | 5,254 | 978 | 3,943 | 1,223 | 3,153 | 1,619 | 2,382 |
| 5-3/4 | 4.49 | 498 | 7,410 | 674 | 5,722 | 898 | 4,295 | 1,123 | 3,434 | 1,482 | 2,602 |
| 5-1/2 | 4.11 | 456 | 8,100 | 617 | 6,250 | 822 | 4,692 | 1,028 | 3,751 | 1,356 | 2,844 |
| 5 | 3.40 | 377 | 9,800 | 510 | 7,562 | 680 | 5,671 | 850 | 4,537 | 1,122 | 3,437 |
| 4-1/2 | 2.75 | 305 | 12,100 | 413 | 9,338 | 550 | 7,012 | 688 | 5,605 | 908 | 4,247 |
| 4 | 2.17 | 241 | 15,315 | 326 | 11,830 | 434 | 8,886 | 543 | 7,102 | 716 | 5,386 |
| 3-3/4 | 1.91 | 212 | 17,420 | 287 | 13,437 | 382 | 10,096 | 478 | 8,068 | 630 | 6,121 |
| Input Power: BHP | 2,400 | 2,500 | 2,500 | 2,500 | 2,500 | ||||||
Ratings are based on 90% mechanical efficiency and 100% volumetric efficiency.
